Ford VCMM Vehicle Communication Measurement Module Advanced Kit

VCMMADV

Ford VCMM Vehicle Communication Measurement Module Advanced Kit VCMMADV


The Vehicle Communication & Measurement Module (VCMM) combines all of the functionality of the VMM, VCM II, and MTS 4000/4100 vibration analyzer in an industry leading one-box solution. The Advanced kit includes all components and functionality found in the base kit P/N 164-R9822 along with the advance driveline balance kit and secondary ignition testing capability. This VCMM Kit gives you complete access to all Ford Trucks, Cars, Gas, Diesel 1996- Current Year. This VCMM kit INCLUDES software dealers license.

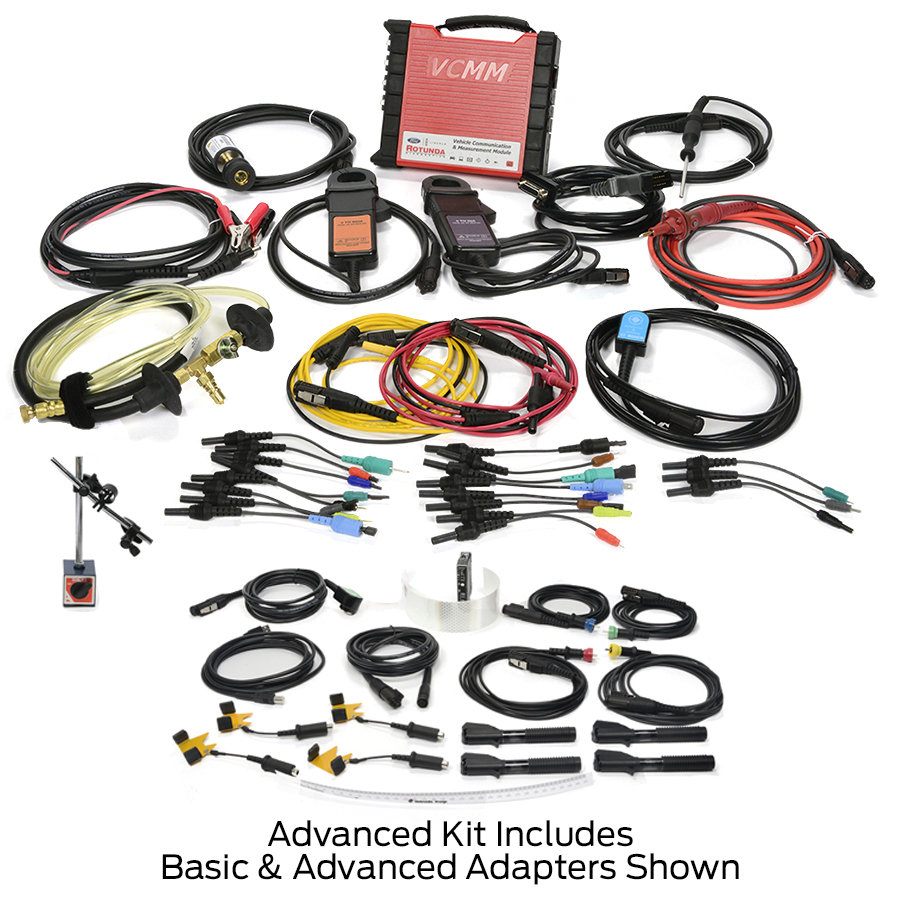

This Kit Includes:

Ford VCMM Advanced Kit, VMM, VCM 2, Vibration Analyzer and Oscilloscope

All Cables and Wireless Module Included

Dealer Software IDS License Included with this Kit

Full Factory 2 Year Industry Leading Warranty


FORD VCMM Kit Includes Software License

DIAGNOSTIC CAPABILITY (DOES IT ALL)

Retrieve CMDTC's

KOEO (Key-On-Engine-Off)

KOER (Key-On-Engine-Running)

Data logger

Body

Chassis

Electrical

Powertrain

Pressure/Vacuum Tests

Network Test

Module Programming

Programmable Module Installation

Module Reprogramming

Programmable Parameters

Body Tools

PATS Functions
*See Note Below

Remote Keyless Entry

Factory Keyless Entry Code

Restraints

Chassis Tools

Bleed anti-lock brakes

IVD Initialization Sequence

Ride Height Calibration

Pneumatic Test

Accurate Trim Test

Electrical Tools

Charging System Test

Parking Aid Switch Test

Audio

Powertrain Tools

EVAP Test

Fuel Economy Test

Fuel System Test/RelativeInjector Flow Test
(VCM and VMM modules are required on some vehicles)

Ignition System Test

Spark Duration PIDs

Power Balance Test

Relative Compression Test

Transmission Test
(IDS - Some vehicles require only VCM)

Engine Checks and OBD Tests
(Drive Cycle, Mode 01, Mode 06 & Mode 09)

EGR Test

Other Powertrain tests & functions


Key Features:

  • Vehicle Communication (VCM II capability)
  • Customer Flight Recorder capable
  • 4-Channel Oscilloscope
  • 4-Channel Digital Multi-meter
  • 5th-Channel direct monitoring of the DLC connector
  • Vibration Analysis
  • Driveline Balance
  • Signal Generator



4/5 Channel Oscilloscope

  • Improved user interface from VMM
  • Four independent differential Input Channels enables independent monitoring of signal types such as monitoring voltage while concurrently measuring voltage drop across the circuit.
  • A Fifth High Speed Channel that can directly monitor CAN signals at the DLC connector
  • Capture/Record capability to assist in capturing intermittent issues
  • Advanced Triggering capability
  • Pre-Configured setup configuration for common signals and procedures
  • New “Time/Angle” time based settings (CKP/CMP timing diagnostics)



Vibration Analysis and Driveline Balance

  • Similar functionality to the MTS 4000/4100
  • Improved user interface with reduced configuration and setup time
  • Color display
  • Record capacity
  • “Strobe light Pick up loop” for improved component identification*
  • Second vibration transducer
  • Dual Plane driveline balance


The Digital Multi-Meter

  • Monitor up to four independent readings at the same time
  • Capture/Record history
  • Graphing capability for up to two channels
  • Voltage, Current, Resistance, Pulse Width, Duty Cycle, Frequency and Period



Signal Generator

  • User configurable settings for signal waveform types: sine, square, triangle, pulse generator, DC voltage and arbitrary.
  • Verify integrity of module input wiring and the module hardware
  • Improved interface and greater adjustability of voltage and frequency.

$5195 In stock
