Vehicle Communication & Measurement Module (VCMM) Advanced Kit

F0128

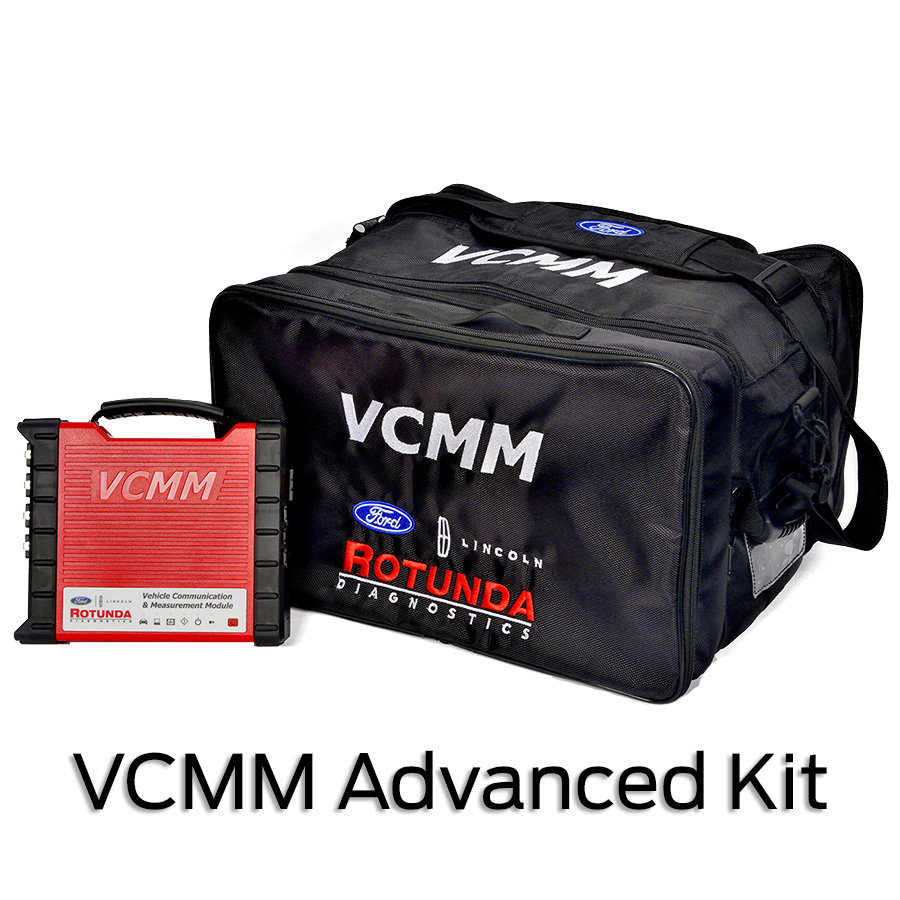

Vehicle Communication & Measurement Module (VCMM) Advanced Kit F0128

The Vehicle Communication & Measurement Module (VCMM) combines all of the functionality of the VMM, VCM II, and MTS 4000/4100 vibration analyzer in an industry leading one-box solution. The combining of this functionality will provide dealers with industry leading diagnostic capability at a significantly lower cost of ownership.The Advanced kit includes all components and functionality found in the base kit P/N 164-R9822 along with the advance driveline balance kit and secondary ignition testing capability.

Key Features:

  • Vehicle Communication (VCM II capability)
  • Customer Flight Recorder capable
  • 4-Channel Oscilloscope
  • 4-Channel Digital Multi-meter
  • 5th-Channel direct monitoring of the DLC connector
  • Vibration Analysis
  • Driveline Balance
  • Signal Generator



4/5 Channel Oscilloscope

  • Improved user interface from VMM
  • Four independent differential Input Channels enables independent monitoring of signal types such as monitoring voltage while concurrently measuring voltage drop across the circuit.
  • A Fifth High Speed Channel that can directly monitor CAN signals at the DLC connector
  • Capture/Record capability to assist in capturing intermittent issues
  • Advanced Triggering capability
  • Pre-Configured setup configuration for common signals and procedures
  • New “Time/Angle” time based settings (CKP/CMP timing diagnostics)



Vibration Analysis and Driveline Balance

  • Similar functionality to the MTS 4000/4100
  • Improved user interface with reduced configuration and setup time
  • Color display
  • Record capacity
  • “Strobe light Pick up loop” for improved component identification*
  • Second vibration transducer
  • Dual Plane driveline balance


The Digital Multi-Meter

  • Monitor up to four independent readings at the same time
  • Capture/Record history
  • Graphing capability for up to two channels
  • Voltage, Current, Resistance, Pulse Width, Duty Cycle, Frequency and Period



Signal Generator

  • User configurable settings for signal waveform types: sine, square, triangle, pulse generator, DC voltage and arbitrary.
  • Verify integrity of module input wiring and the module hardware
  • Improved interface and greater adjustability of voltage and frequency.

System Requirements:
The VCMM will run on any Windows 7 or higher operating system that has 8GB of RAM or higher.
IDS software subscription required.


Rotunda Part Number: 164-R9823

Item may not be exactly as pictured.

$5629.95 In stock
